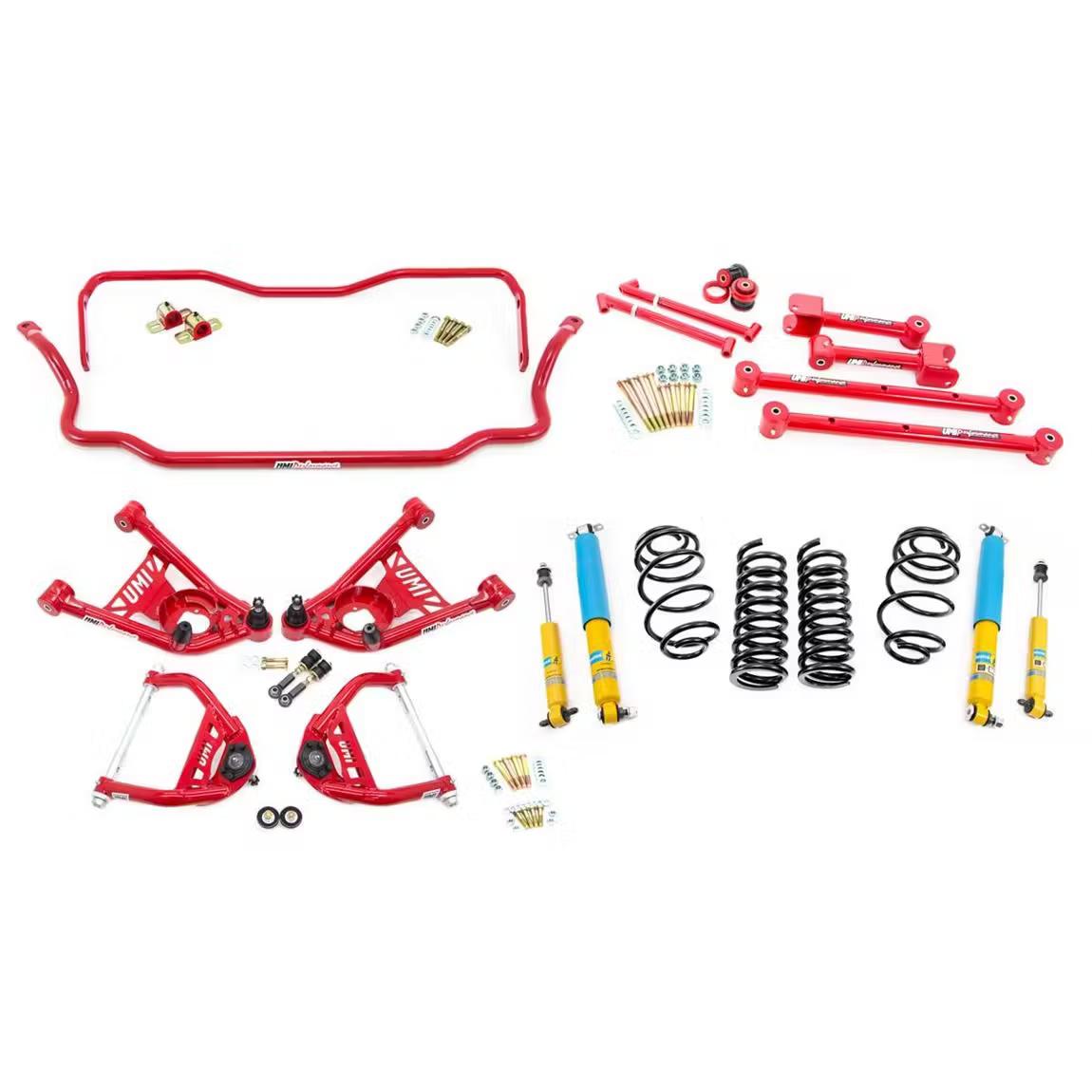

UMI ABF803-1-R 68-72 A-Body Stage 2 Kit, 1 Inch Lowering, Red

Product Summary

• Buick, Chevy, Oldsmobile, Pontiac, Powder Coated

Details

UMI Performance’s newly renovated Stage 2 handling kit includes everything to upgrade and rebuild the suspension on your classic 1964-1972 GM A-Body. The Stage 2 kit includes upper and lower front A-Arms with 1/2″ added spindle height via tall ball joints, heavy duty UMI sway bars with new end links and greaseable bushings, UMI monotube gas shocks for all four corners, UMI premium lowering springs, rear tubular upper and lower control arms, replacement rear end housing bushings and heavy duty tubular frame braces. We also include all new Grade 8 hardware with locking nuts to complete the installation. This kit will make any classic cruiser feel like a modern day muscle car! UMI’s Stage 2 may be our entry level complete kit but it isn’t entry level performance or entry level quality. Perfect for the weekend warrior looking to go for a back road cruise, perhaps hit the drag strip or even an auto-x. As with all UMI Performance products, this kit is 100% Made In USA.

#4028 – Tubular frame braces with hardware.

#3000 – Replacement rear end housing bushings.

#4004 – Front upper & lower Grade 8 hardware kit.

#4001 – Rear control arm Grade 8 hardware kit.

#S41030- UMI monotube shocks, designed & tuned for optimum ride quality combined and performance.

Small Block and LS: Small block motors, Pontiac 400 or Big Block with aluminum heads and intake tend to sit level with this kit. Lightweight LS may require spring trimming.

Big Block Engines: An additional 1/4″ front end drop may occur on vehicles with full weight big block engines.

Kit Substitutions- We can substitute any item of equal value or higher value. We cannot remove items from any kit and still offer the free shipping special. If you would like to substitute items please contact our sales staff at 814-343-6315 or the „Ask us about this item“ link to request a quote.

Color Selection: All UMI fabricated products are available with the customer’s choice of high quality durable red or black powder coat finish. Please note that regardless of color chosen the UMI springs and shocks will always be supplied black.

UMI’s Stage 2 Handling Kit Includes:

#4031- Tubular lower front a-arms with polyurethane bushings.

#4033-1 Upper front a-arms with Delrin bushings, tall ball joints.

#4035- Heavy duty 1-1/4” front sway bar with new bushings & endlinks.

#4034- Solid 1” heat treated rear sway bar.

#4050 – 1” lowering springs, linear spring rates (530 lb/in front, 130 lb/in rear).

#4015 – Tubular rear lower control arms with polyurethane bushings.

#4016 – Tubular rear upper control arms with polyurethane bushings.

KEY SPECS
MFG. Part #	ABF803-1-R
Brand	UMI Performance
Bushing Material	Polyurethane
Hardware Included	Yes
Spring Rate	530 lbs.
Front Coil Springs Included	Yes
Rear Coil Springs Included	Yes
Rear Leaf Springs Included	No
Front Shock Struts Included	Yes
Front Shock Type	Gas-charged monotube
Rear Shock Struts Included	Yes
Rear Shock Type	Gas-charged monotube
Front Sway Bar Included	Yes
Front Sway Bar Finish	Powder Coated
Front Sway Bar Type	Solid
Front Sway Bar Diameter	1.25″
Rear Sway Bar Included	Yes
Rear Sway Bar Finish	Red powdercoated
Rear Sway Bar Type	Solid
Rear Sway Bar Diameter	1″
Tie Rod Sleeves Included	No
End Link Bushings Included	Yes
Rear Leaf Spring Bushings Included	No
Sway Bar Bushings Included	Yes
Upper Trailing Arms Included	Yes
Lower Trailing Arms Included	Yes
Trailing Arm Mount Braces Included	No
Panhard Bar Included	No
Torque Arm Included	No
Upper Control Arms Included	Yes
Lower Control Arms Included	Yes
Control Arm Style	Tubular
Control Arm Material	Steel
Control Arm Finish	Powder Coated
Front Strut Tower Bar Included	No
K-Member Support Brace Included	No
Rear Strut Tower Bar Included	No
Subframe Connectors Included	No
Chassis Stiffener Included	Yes
Calipers Included	No
Rotors Included	No
Brake Pads Included	No
Brake Lines Included	No
Wheel Studs Included	No
Center Link Included	No
Spindles Included	No
Inner Tie Rod Ends Included	No
Outer Tie Rod Ends Included	No
Front Suspension Height	1.0 Inch Lowered
Rear Suspension Height	1 Inch Lowered
Bushing Color	Black/Red
Progressive Rate Spring	No
GENERAL
Finish	Powder Coated
Sold in Quantity	Set
