Edelbrock Small Block Chevy Dual Quad Set-Up

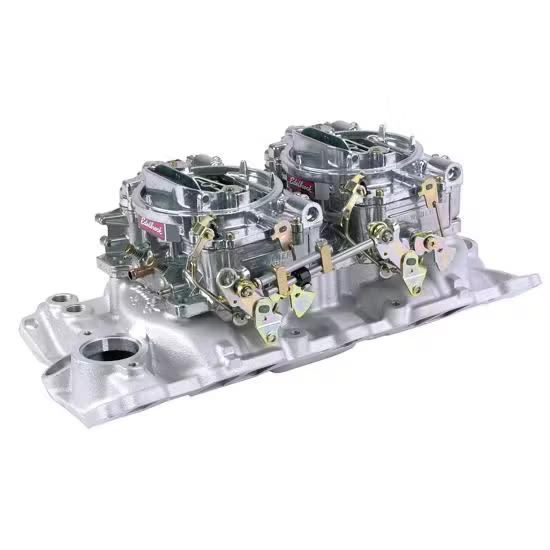

There is nothing sweeter looking or sounding than a dual quad on a Chevy! This one kit gets you two manual choke Edelbrock carbs, an Edelbrock unpolished intake manifold, fuel line and special progressive linkage. Just add a suggested air cleaner to finish your installation. Will clear HEI distributors. 6-7/16″ carb centers.

1957-86 262-400 small block
(2) 500 cfm manual choke carbs
C-26 Dual-Quad manifold
1500-5000 rpm
Low profile for hood clearance on most vehicles
Specificaties

Measurements using the rear valley of the intake as a starting point it is:

3.433″ to the bottom mounting surface
6.640″ to the ring mount on the carb
7.553″ to the top of the throat/highest point on the carb
Measurements from the bottom of the intake valley to the highest point on some of our popular air filter assemblies:
325-4237: 10.490″
325-1235: 9.753″
325-4119: 11.489″
