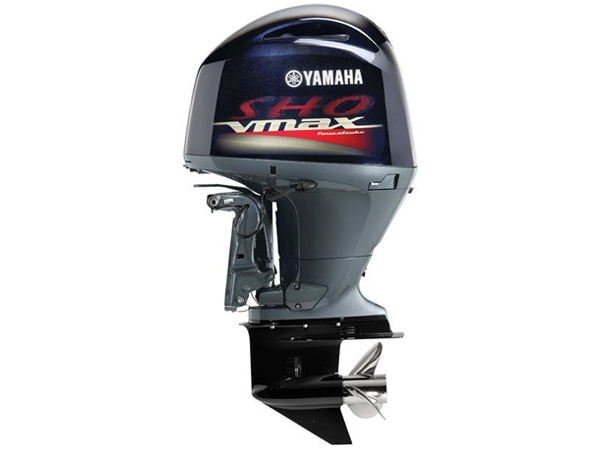

2017 Yamaha VF150 LA VMAX SHO Buitenboordmotor

2017 Yamaha VF150 LA VMAX SHO Buitenboordmotor

Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I•4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.

2017 Yamaha VF150 LA VMAX SHO Buitenboordmotor

• 2.8L High Output Four Cylinder

• Dubbele bovenliggende nokkenassen

• 4 grote radiuskleppen per cilinder

• Variabele nokkenastiming

• 4 Independent Fuel Injectors

• Tuned Long Track Induction System

• Elektronische meerpunts-precisiebrandstofinspuiting

• Four-Into-One Exhaust

• Blow-By Gas Reburning System

• Offset Crankshaft

• Counterbalancing technology

• Compact, lichtgewicht ontwerp



2017 Yamaha VF150 LA VMAX SHO Buitenboordmotor

Jaar 2017

Fabrikant Yamaha Marine

Model Name VF150

Trim Name LA

Generiek type (primair) Viertakt

Motor

Engine Type In-Line Four-Cylinder

Engine Power 150 HP @ 5500 RPM

Alternator (Output): 50 Amp

Displacement 2785cc (170.0 ci)

Gear Ratio (Primary) (28:14) 2.0:1

Smering Nat carter

Fuel Type Induction: EFI (DOHC) VCT

Olietype (aanbevolen): Yamalube® 4-M (zie gebruikershandleiding)

Brandstoftype (aanbevolen): Normaal loodvrij (minimum octaangehalte 89)

Capaciteiten

Oil capacity 4.5L/4.3L w/without filter

Bereik

Opmerking Toerentalbereik bij volgas: 5000-6000 tpm

Afmetingen

Lengte schacht: 20″

Boring 3,78 in. (96 mm)

Stroke 3.79 in. (96.2 mm)

Gewichten

Dry Weight 480 lb (218 kg) VF150LA

Kenmerken

Uitlaat door propeller

Intake Design Single Electronically Controlled Throttle Valve

Kenmerken C.A.R.B.-classificatie: 3 sterren

Opmerking Versnelling: Vooruit, Neutraal, Achteruit

Opmerking Ethanolmengselgrenswaarde: 10% Maximum

Compressieverhouding 10,3:1

Cooling Thermostatic Control

Ontstekingssysteem: TCI Micro Computer

Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°

Elektrische starter met/PTT

Garantie

Garantie 3 jaar Plezier, 3 jaar Overheid, 1 jaar Commercieel
