2017 Yamaha F20 LMHA Außenbordmotor

Buy 2017 Yamaha F20 LMHA Outboard Motor Online

Buy 2017 Yamaha F20 LMHA Outboard Motor Online, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender.

Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.

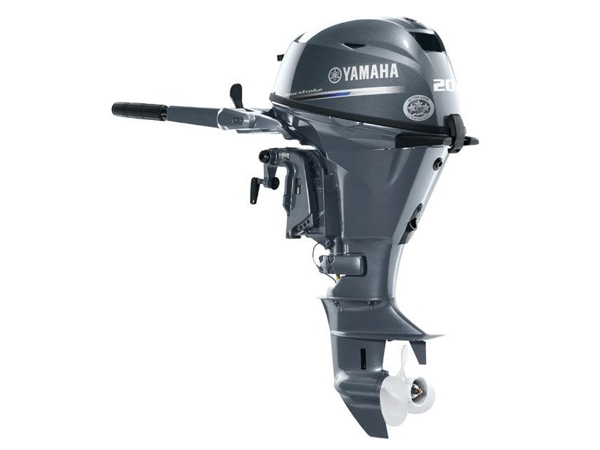

2017 Yamaha F20 LMHA Outboard Motor

• SOHC

• Large Displacement Engine

• Streamlined Intake Manifold

• Large Volume Air Silencer

• Labyrinth Exhaust

• Water-Cooled Fuel Pump

• Acceleration Pump

• Long Span Mounting System
• Four Stroke Engine Design

2017 Yamaha F20 LMHA Outboard Motor

• Year 2017
• Manufacturer Yamaha Marine
• Model Name F20
• Trim Name LMHA
• Generic Type (Primary) Four Stroke

Engine

• Engine Type 2 Cylinder
• Engine Power 20 hp @ 5500 rpm
• Alternator (Output): 10A **
• Displacement 22.1 ci (362 cc)
• Gear Ratio (Primary) (27:13) 2.08:1
• Lubrication Wet sump
• Fuel Type Induction: SOHC
• Ignition System: CDI Micro Computer
• Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
• Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)
• Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external)
• Steering Angle (Maximun): 45° from center, either direction
• Capacities
• Oil capacity 1.8L/1.6L w/without filter
• Spark Plug
• Spark Plug DPR6EB-900-000
• Range
• Note Full Throttle RPM Range: 5000-6000
• Dimensions
• Length Shaft: L=20″
• Bore 2.48 in. (63 mm)
• Stroke 2.29 in. (58.1 mm)
• Weights
• Dry Weight F20LMHA = 52kg (115lbs)
• Features
• Starter Manual or Electric
• Features Degree of Tilt: 67°-71° | Degree of Trim: 4 positions
• Cooling Water/Thermostatic Control
• Note Ethanol Blend Limit: 10% Maximum
• Note Gear Shift: Forward, Neutral, Reverse
• Features C.A.R.B. Rating: 3 Star
• Intake Design Carbureor
• Compression Ratio 9.3:1
• Exhaust Through Propeller
• Note Mounting Centers: 28.6″t

Warranty

Warranty 3-Year Pleasure (2-year on jet pump assembly), 3-Year Government (2-year on jet pump assembly), 1-Year Commercial (1-year on jet pump assembly)
