MILLER DYNASTY 800 TIG LASAPPARAAT EN WATERGEKOELD PAKKET MET VOETBEDIENING (951696)

The Miller Dynasty 800 TIG Welder is a powerful, compact power source capable of welding up to 1” aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Blue Lightning – High Frequency Arc Starter
For more consistent non-contact starts and greater reliability compared to traditional HF arc starters.

120 V Auxiliary Power
The Dynasty 800 has a 120 V auxiliary power receptacle for the cooling system or small tools.

Blue Lightning – High Frequency Arc Starter
For TIG non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Easy to set up and increases productivity.

Auto-Line Power Management-technologie
Allows for any input voltage hookup (115-460 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable.

Program memory
Program memory features 9 independent program memories that maintain/save your parameters.

Meter Calibration
Allows meters to be calibrated for certification.

AC Waveforms
• Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds.
• Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action.
• Sine wave is for customers that like a traditional arc. It is quiet with good wetting.
• Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.

AC and DC TIG Features
• Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode.
• Extended AC balance controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
• AC frequency (20-400 hz) controls the width of the arc cone and the force of the arc.
• DC TIG provides exceptionally smooth and precise arc for welding exotic materials.
• High-speed DC TIG pulse controls – Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.

Stick Features (AC/DC)
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
• Hot Start adaptive control provides positive arc starts without sticking.
• AC frequency control adds additional stability when Stick welding in AC for smoother welds.

Cart with the following features:
• Single cylinder rack
• Foot pedal holder
• (3) Cable/torch holders
• (2) TIG electrode filler holders

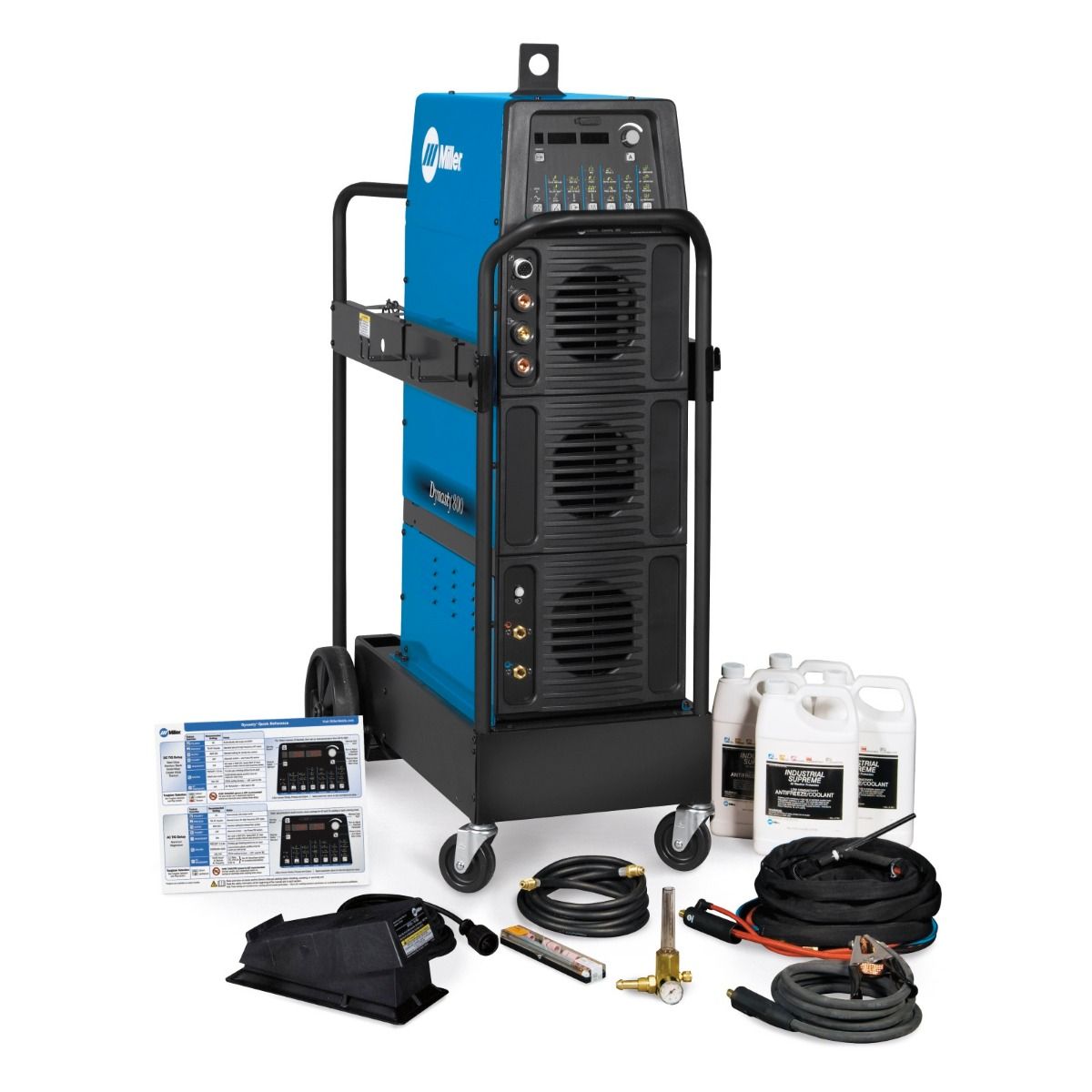

Compleet geleverd met:
• Dynasty 800 power source
• 2) Thread lock adapters (225029)
• (1) Water cooled thread lock torch adapter (225028) for #18 or #20 torches
• Coolmate 3.5 Coolant System
• RFCS-14 HD Foot Control (194744)
• 25ft (7.6 m) Weldcraft WP18SC water-cooled torch
• Torch cable cover
• AK18C torch accessory kit includes: shielding cups, collets, collet bodies, and 2% cerium tungsten electrodes (3/32, 1/8 and 5/32 in)
• Smith regulator/flowmeter H1954D-580
• Gas hose (regulator to machine)
• 12 ft (3.7 m) 4/0 weld lead with clamp (work or ground lead)
• 4 gallons of pre-mixed low-conductivity coolant (043810)
• Note – Primary cord must be ordered separately.
