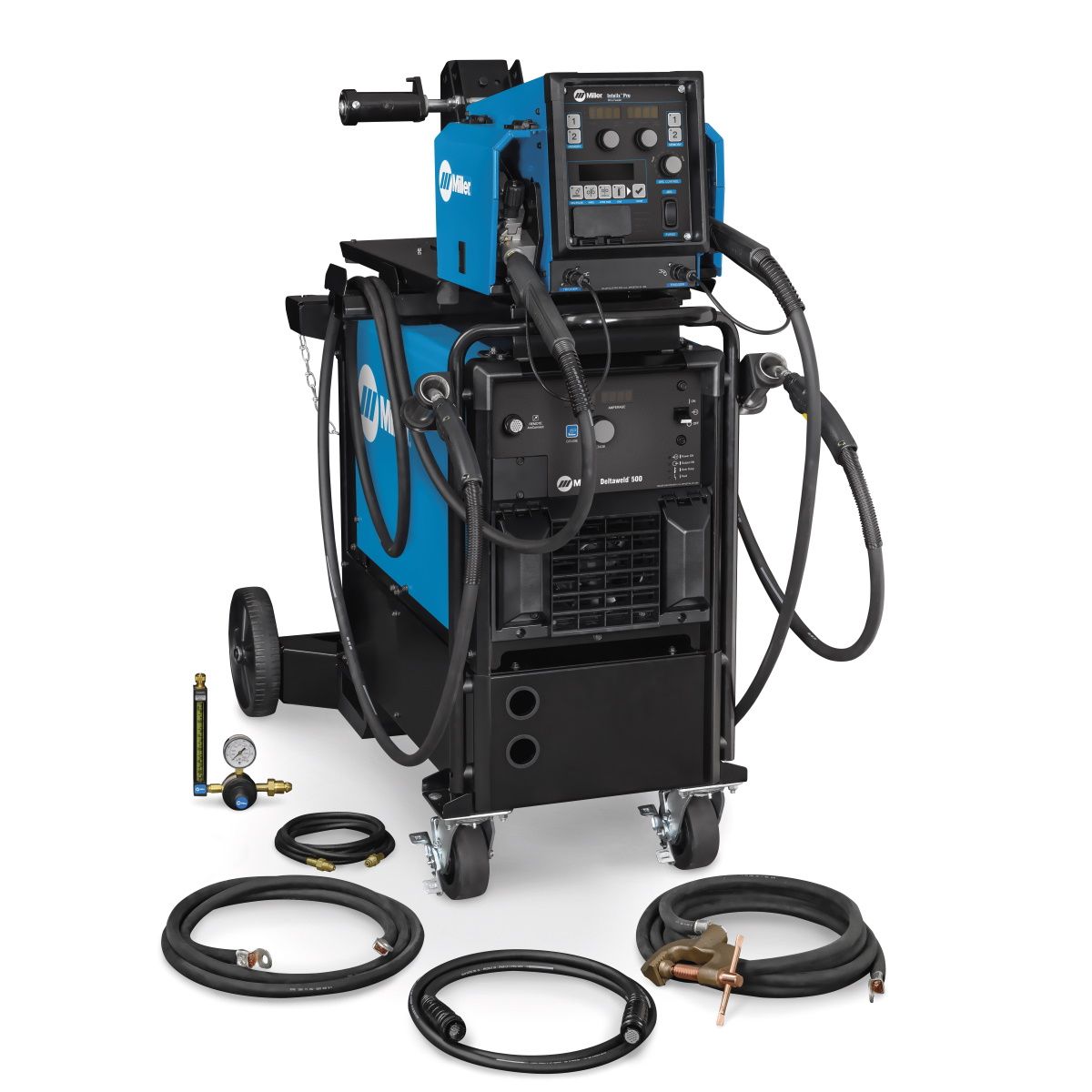

MILLER DELTAWELD 500 MIGRUNNER MET DUBBELE INTELLX PRO VOEDING (230/460V) (951820)

MILLER DELTAWELD 500 MIGRUNNER MET DUBBELE INTELLX PRO VOEDING (230/460V) (951820)

The Miller Deltaweld 500 power source comes with ArcConnect, Accu-Pulse technology, and digital meters. Accu-pulse process allows for precise control of the pulse arc. This technology also provides optimum molten puddle control and has power to increase wire feed speeds and deposition 20 to 25 percent in many applications. The Deltaweld comes with several of Miller’s standard features such as Wind Tunnel Technology and Fan-On-Demand, yet features their newest generation of technology called ArcConnect. ArcConnect utilizes high speed signals to improve weld performance and allow point-of-use controls to be located at the feeder.

De Deltaweld 500 wordt standaard geleverd met digitale meters en hulpvoeding met een optioneel 14-pins aansluiting. Deze apparaten hebben ook een speciale CC-gutsmodus voor maximaal 3/8″-koolstoffen.

Deze Deltaweld 500 wordt NIET geleverd met een 14-pins aansluiting, maar met ArcConnect kabels.

The Intellx feeders come with digital meters, remote voltage, arc control, and jog/purge controls. The drive system comes with a balanced-pressure drive roll design that feeds wire in its truest and straightest form for consistent performance. The accu-mate connection aligns gun perfectly in the drive-roll carrier, preventing the gun from being pulled loose and providing consistent wire feeding. This particular package includes the Intellx Pro dual feeder, which allows more capabilities like stainless, flux-cored, metal-cored, different wire types, and different gas types.

Kenmerken Deltaweld
- Accu-pulstechnologie
- EZ-Set parameters
- ArcConnect technologie
- Ventilator op aanvraag
- Windtunneltechnologie

Deltaweld Quick Specs
• Output Range: 30-650A | 10-44V
- Activiteitscyclus: 60% @ 575A | 100% @ 500A
- Ingangsvermogen: 230/460 | Alleen 3-fasen
• Weight: 405 lbs

Intellx Features
• EZ-Set MIG
• EZ-Set Accu-Pulse
• Memory Recall Buttons
• Digital Display
• Arc Control for fine tuning
• Jog and Purge Button
• Balanced-pressure drive roll design and tensioners
• Rotatable drive assembly

Intellx Quick Specs
• Duty Cycle: 60% @ 600A
• Wire Feed Speed: 50-780 IPM
• Wire Diameter: .023-5/64
• Max Spool Size: 18 inches | 60 lbs
• Weight: 44.8 lbs
• Dimensions: 14″H x 18″W x 34.5″L

Inclusief
• Deltaweld 500 Power Source (907785)
• Dual-Wire Intellx Pro Feeder w/15 foot Bernard Gun
• Running Gear w/Dual Cylinder Rack
• Flowmeter Regulator w/Gas Hose
• 4/0 Weld Cable with Lugs
• Work Cable with 600 A C-clamp
• 9 Foot ArcConnect Cable
• .035/.045 V-Groove Drive Rolls
• Spare Bernard Centerfire Contact Tips
