FABRICATOR 141I MULTIPROCES LASSEN

The ESAB Fabricator 141i Multi Process Welding System (W1003141) with TIG Torch (W4013802) contains everything you need to tackle all three processes. The Fabricator 141i continues the legacy that Thermal Arc has established in the industry. The ESAB Fabricator Series, with its leading technology, has set a new standard for portable welding equipment delivering 3-in-1 MIG, TIG, and Stick capability from one integrated, portable system. Warranty: 3 Years Limited Warranty

Three Process Capability:
MIG (GMAW/FCAW), STICK (SMAW), TIG (GTAW).

MIG:
• Infinite Voltage Control for precise voltage settings.
• Inductance Control for arc stability and spatter control.
• Tweco Fusion MIG Gun w/10 ft cable and industry standard #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4″ or 8″ Spool Capacity allows easy installation of wire spool sizes.
• Spool Gun ready.
• Adjustable Burnback Control.

STICK:
• Adjustable Arc Force Control for optimum STICK electrode performance.
• Built in Hot Start for easy arc starting.

TIG:
• Torch W4013802 to be able to TIG is included.
• Lift TIG Start: Provides TIG arc starting without use of high frequency.
• Downslope: Eliminates the crater that can form at the completion of a weld.

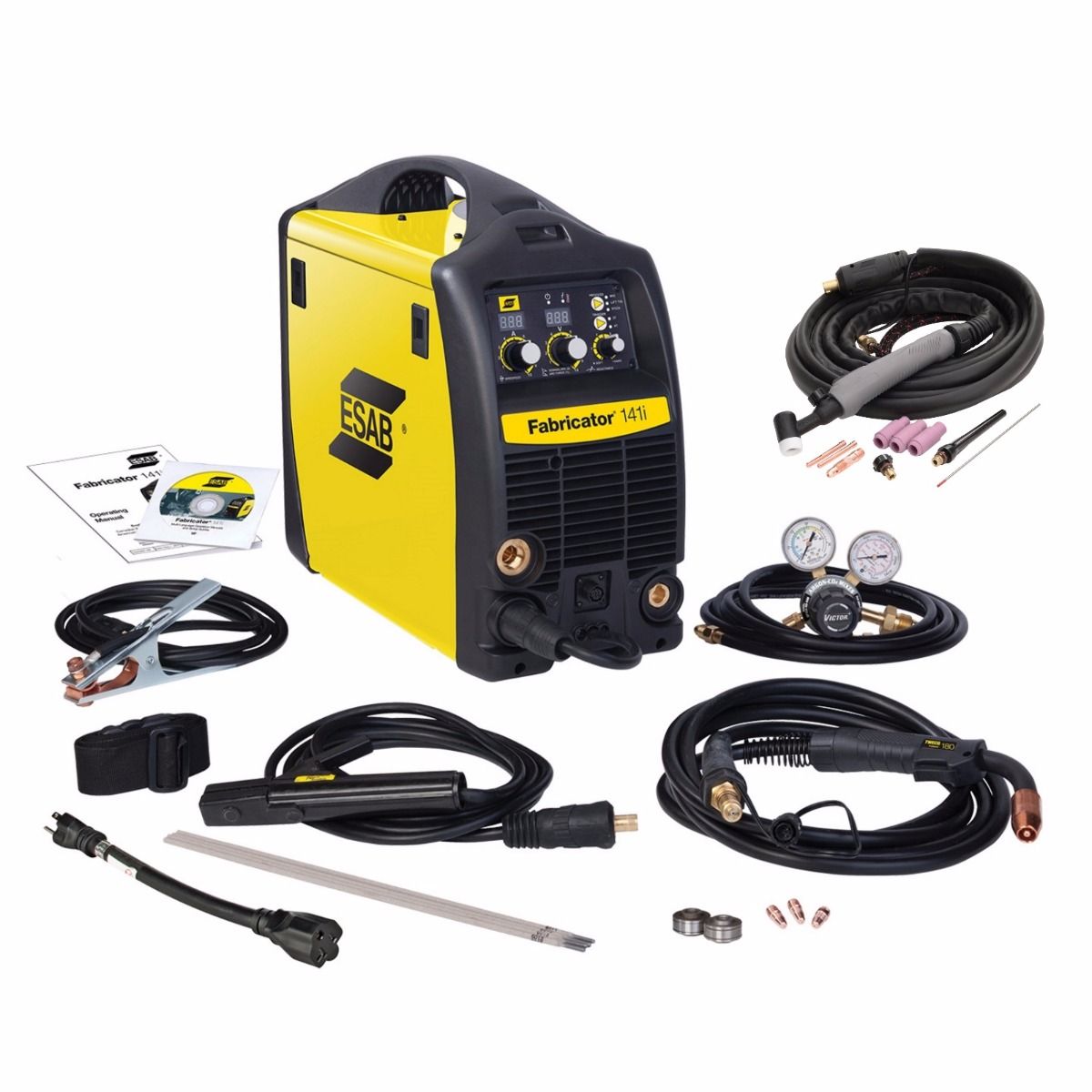

Comes Complete with:
• Fabricator 141i Power Supply
• Thermal Arc TIG Torch W4013802
• 10 ft Tweco Fusion 140 Amp MIG Gun
• Victor Argon Regulator/Gauge and 12.5 ft (3.8 m) Hose
• Electrode Holder with 13 ft (4 m) Lead
• Ground Clamp with 10 ft (3 m) Lead
• 4 General Purpose Stick Electrodes (E6013)
• Operator’s Manual & CD
• 10 ft (3 m) Power Cord and NEMA 5-20P 115V AC Plug
• Power adapter – 115V, 20A to 15A
• Shoulder Strap
